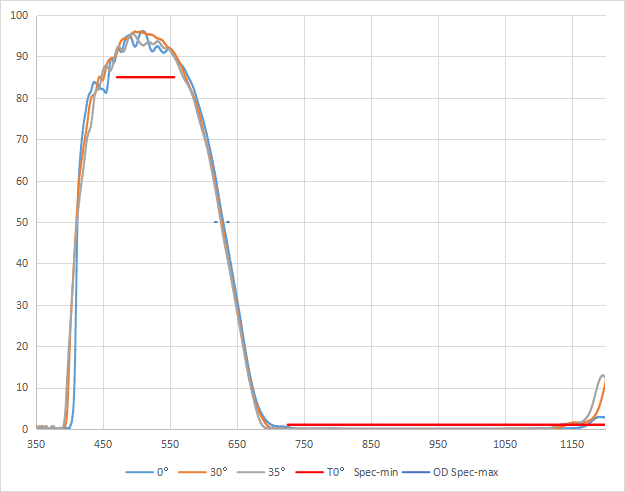

旋涂光谱曲线

旋涂光谱规格与应用

旋涂光谱规格：Operation Wavelength：350-1200nm ，Use angle：0°and 30°and 35°。

AOI=0°and 30° SPEC—IR ITEM:435-560nm ：Tave≥90%，Tmin≥76%

350-395and700-1200nm： Tave≤0.1%，Tmax≤1%

430-640： Ravg≤1%，Rmax≤2%

  AOI=35°SPEC-IR ITEM:435-560nm：Tave≥89%，Tmin≥74%

WL T at Aol=0-35°：IR T=50%@410±6nm CUT waveleegth shift ≤5nm

                 IR T=50%@628±5nm CUT waveleegth shift ≤5nm

                 IR T=15% CUT waveleegth shift ≤5nm

AOI=0°SPEC—AR ITEM:

              420-680mm： Ravg≤1% and Rmax≤2%@0°，Rmax≤2.5% and Ravg≤1.2% @30°
